Clee Cycles

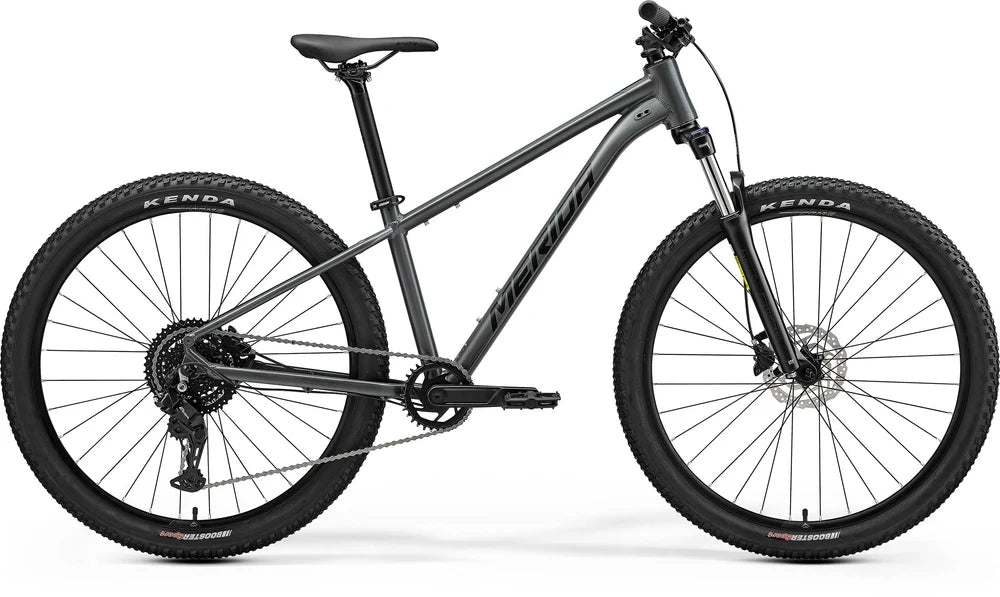

Merida Big Seven 20
Merida Big Seven 20
Regular price
£700.00 GBP
Regular price
Sale price
£700.00 GBP
Unit price
/
per
Tax included.
Couldn't load pickup availability
Highlights
- Updated TFS aluminium frame with clearance for 2.4" tyres
- Trail ready geometry for confident off-road handling
- 120mm Suntour suspension fork
- Shimano MT200 hydraulic disc brakes
- Shimano 1 x 8 drivetrain
- 27.5" wheels with Shimano hubs and Kenda tyres
- Size tuned Merida finishing kit
650b hardtail with sophisticated TFS aluminium trail ready geometry frame, Shimano 1 x 8 drivetrain, SR Suntour 120mm lockout fork, Shimano hydraulic disc brakes,
Frame
- TFS V - 6061 aluminium, double butted and technoformed. Tapered head tube. Chain stay mounted disc brake. Internal cable routing. Mudguard and kick stand mounts. BSA threaded BB. 135mm x 9mm axle. Max. tyre size 27.5" x 2.4"
Fork
- SR Suntour XCM32 NLO; Coil; 120 mm travel; lockout; 29x2.4" max. tyre size
Gears
- 8
Shifters
- Rear: Shimano Essa SL-315-8R
Rear Derailleur
- Shimano Essa RD-U2000-8; GS
Bottom Bracket
- Shimano UN101 LL123
Chain
- KMC Z8.3
Chainset
- Prowheel Epro-MD26S; 32 tooth chainset; material: aluminium; Crank length: 165mm
Cassette
- Shimano CS-HG300-8; 11-45 teeth; 8 speed
Front Brake
- Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Rear Brake
- Shimano MT200; hydraulic brake with Shimano RT10; 160 mm
Grip
- Merida EC
Handlebar
- Merida CC; material: aluminium; 15mm rise; (XXS-XS) - 700mm wide, S - 720mm wide
Stem
- Merida Comp CC; material: aluminium; 31.8 mm diameter; 7 degree rise
Head Set
- FSA NO.55R/57SC/57B
Pedal
- VP VPE 536
Saddle
- Merida Sport
Seat Post
- Merida Comp CC; material: aluminium; 30.9mm diameter; in-line
Wheel Size
- 27.5"
Rims
- Merida Comp CC; 20mm inner rim width; material: aluminium
Spokes
- Black steel
Front Hub
- Shimano TX505; 100x9mm; 32 Spoke; Centerlock
Rear Hub
- Shimano TX505; 135x9mm; 32 Spoke; Centerlock
Front Tyre
- Kenda Booster; 27.5x2.4"
Rear Tyre
- Kenda Booster; 27.5x2.4"
