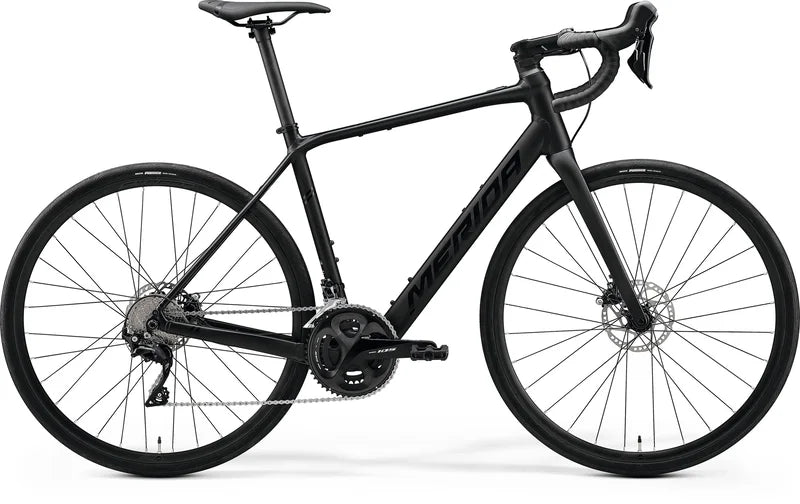

Merida eScultura 400

• Lightweight
• MAHLE ebikemotion 40Nm hub motor
• Integrated 250Wh battery
• Carbon fork
• Shimano 105 2 x 11 drivetrain
• Shimano 105 hydraulic disc brakes

The silhouette of the bike would not give away
the fact the eScultura benefits from a permanent tail wind. MAHLE's
ebikemotion system uses a 40Nm rear hub motor powered by a fully
integrated 250Wh battery hidden in the downtube. The low system weight
combined with a carbon fork and sophisticated aluminium frame means the
bike also feels lively even without power assistance. There is almost
no drag at all from the motor when it is not engaged. The system has an
iWoc button for controlling support levels and a sophisticated app gives
 the opportunity to adjust the riding feel as well as post-ride analysis
 features. The frame has mounts for mudguards and rack and a neat hidden
 kickstand mount. Cable routing is through the frame with cables
entering through a specific headset cap to keep the cockpit nice and
neat.

Specification
Frame

    Lite - Hydroformed 6066 triple butted aluminium with integrated battery chamber, mounts for mudguards, rack and kickstand. 9mm QR axle standard, BSA BB standard. Max Tyre clearance 700 x 45c without mudguards, 700 x 42c with mudguards

Motor

    MAHLE X35+ Hub motor

Battery

    MAHLE B1-C 250Wh battery

Battery Capacity

    250 Wh

Charger

    MAHLE Charger-C

Power Button

    MAHLE iWoc button

Mode Switch

    MAHLE iWoc button

Fork

    Mission CX CF3; carbon. Max Tyre clearance 700 x 35c

Gears

    22

Shifters

    Shimano 105

Front Derailleur

    Shimano 105

Rear Derailleur

    Shimano 105; GS

Bottom Bracket

    Shimano BSA

Chain

    KMC e 11 Speed

Chainset

    Shimano 105; 50-34 teeth chainwheel with 170mm - XS/S/SM/ML, 175mm - L/XL length crank

Cassette

    Shimano 105; 11-32 teeth; 11 speed

Brake Lever

    Shimano 105

Front Brake

    Shimano 105; 2 piston hydraulic disc brake with Shimano RT64; 160mm rotor

Rear Brake

    Shimano 105; 2 piston hydraulic disc brake with Shimano RT66; 160mm rotor

Grip

    Merida Road Expert

Handlebar

    Merida Expert CW

Stem

    Merida Expert CC; aluminium; 31.8mm diameter; 5 degree rise - Length : 80 mm-XXS/XS, 90 mm-S, 100 mm-SM/ML, 110 mm-L/XL

Head Set

    FSA No. 69/SRS

Pedal

    VP Components, VPE-891

Saddle

    Merida Comp SL; V-mount

Seat Post

    Merida Expert CC; Material: carbon; 30.9mm diameter; in-line

Wheel Size

    700c

Rims

    Merida Expert SL; 17mm inner rim width; 22mm profile

Spokes

    Black stainless

Front Hub

    VP CLK170F; 100x12mm; 28 spokes; Centerlock

Rear Hub

    MAHLE X35+ Hub motor

Front Tyre

    Maxxis Pursuer; 700 x 32C; Kevlar bead; folding

Rear Tyre

    Maxxis Pursuer; 700 x 32C; Kevlar bead; folding

Colour

    Black

Season

    2021

Front Light

    CG-119P front light

Rear Light

    CG-404RG rear light

Other

    Complete with: front and rear lights
