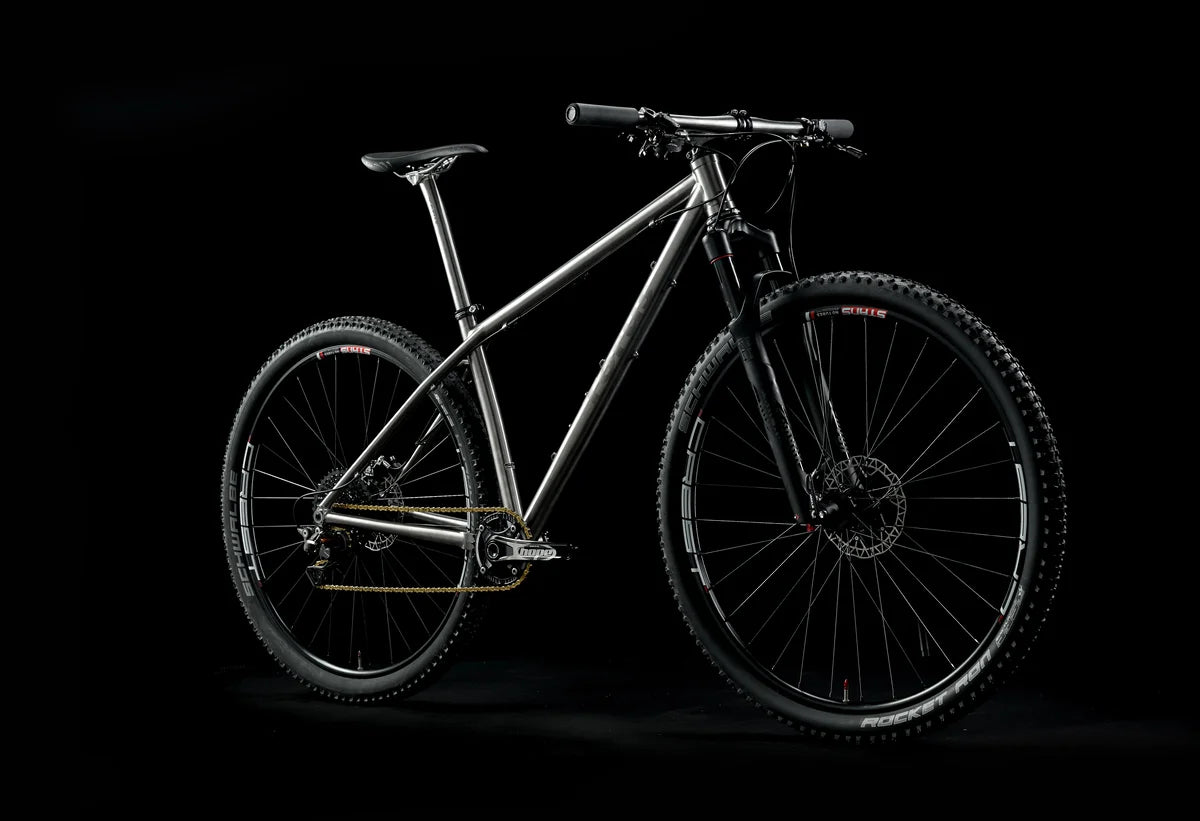

Torus Ti-XC Mk4 Titanium MTB

The 4th evolution of our Cross-Country frame

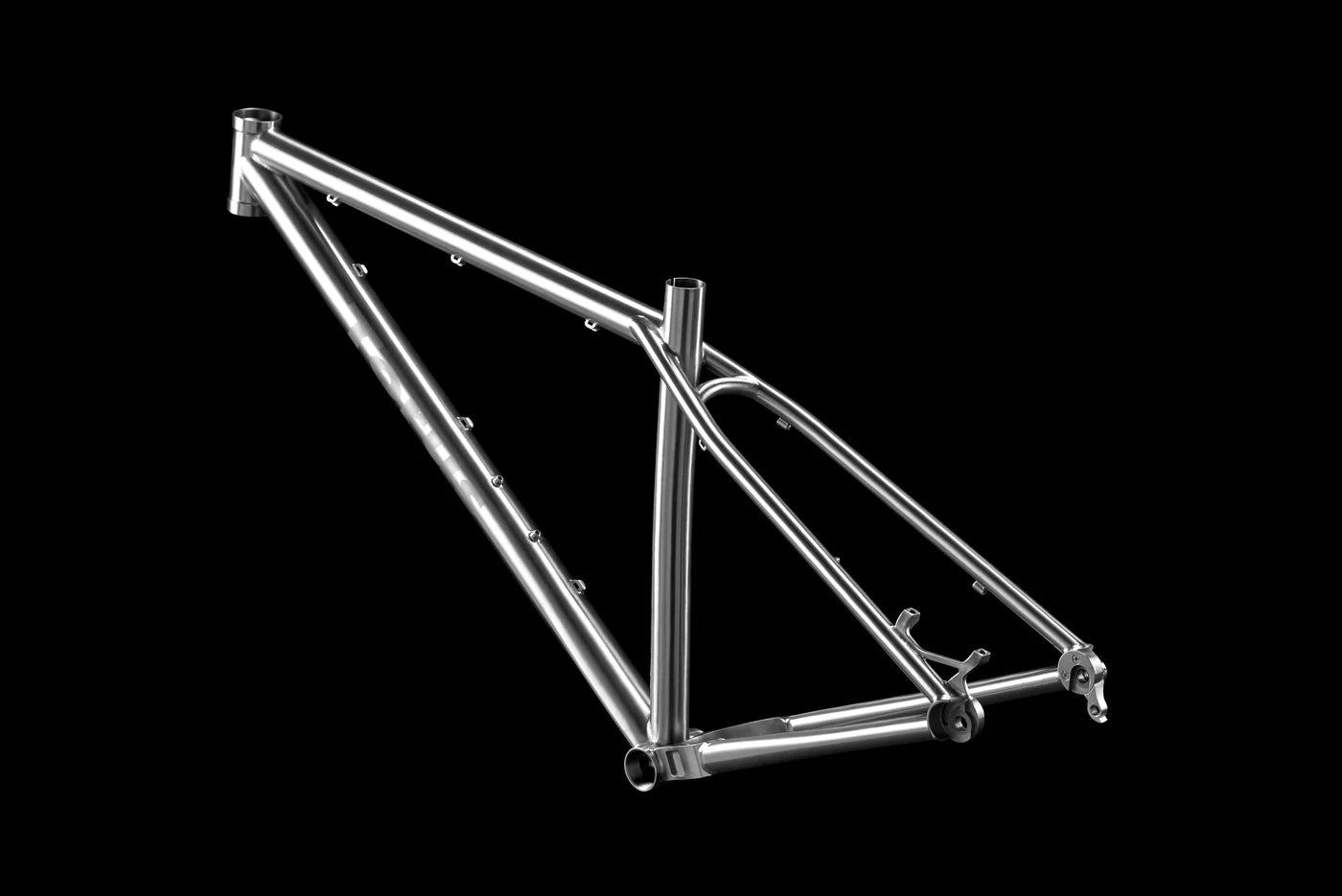

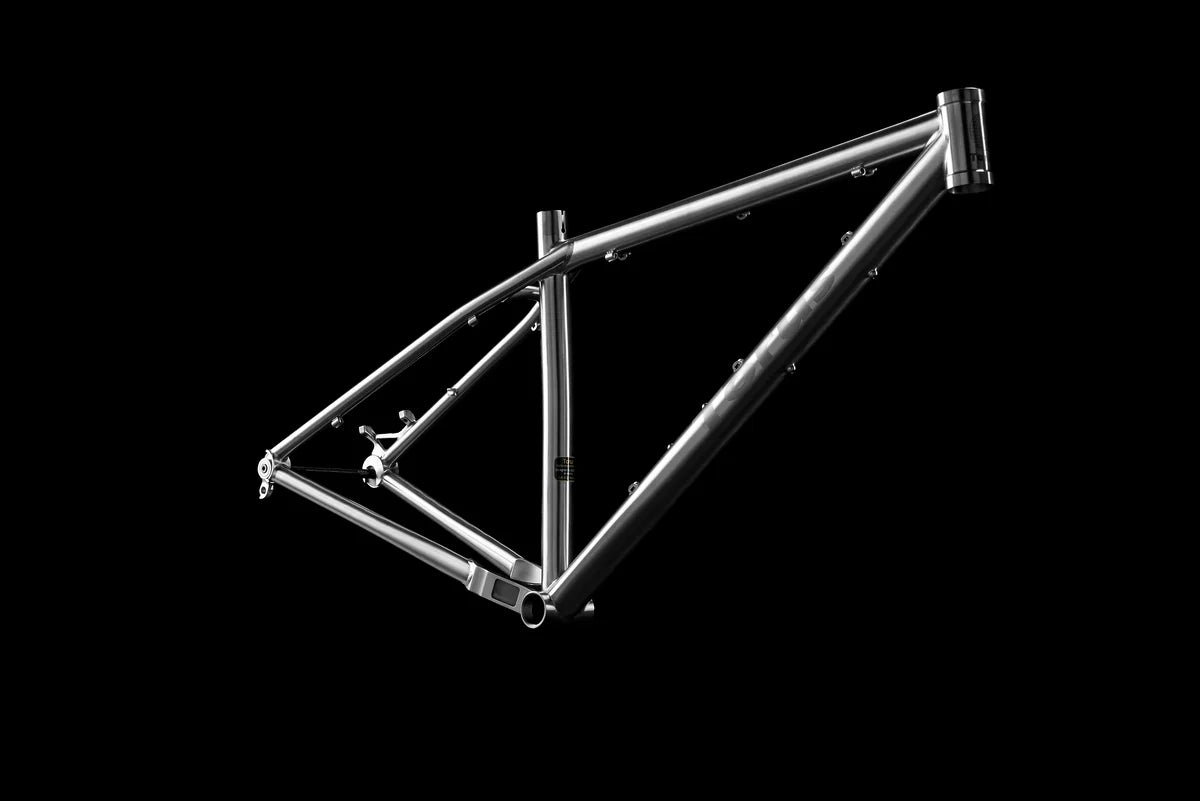

It's still a 29er hardtail designed on a 100-120mm fork, and the long, low classic titanium frame is still there - but with a few notable improvements:-​

More progressive seat and head tube angles. The seat tube angle varies from 75 on the small frame to 76 degrees on the Large frame. This keeps the saddle above the cranks more for the longer legged riders. Head tube angle is 68 degrees on a 100mm fork and drops closer to 66 on a 120mm fork. This keeps the handling nice and sharp with the latest 44mm offset XC forks​

the seat tube is now straight to allow for longer drop droppers, and still 31.6mm internal dropper compatible​

the BB is slightly lower at 60mm to improve handling, but not so low as to pedal strike too easily​

the rear dropout is still boost 12x148mm but now uses the UDH hanger for T-type compatibility ​

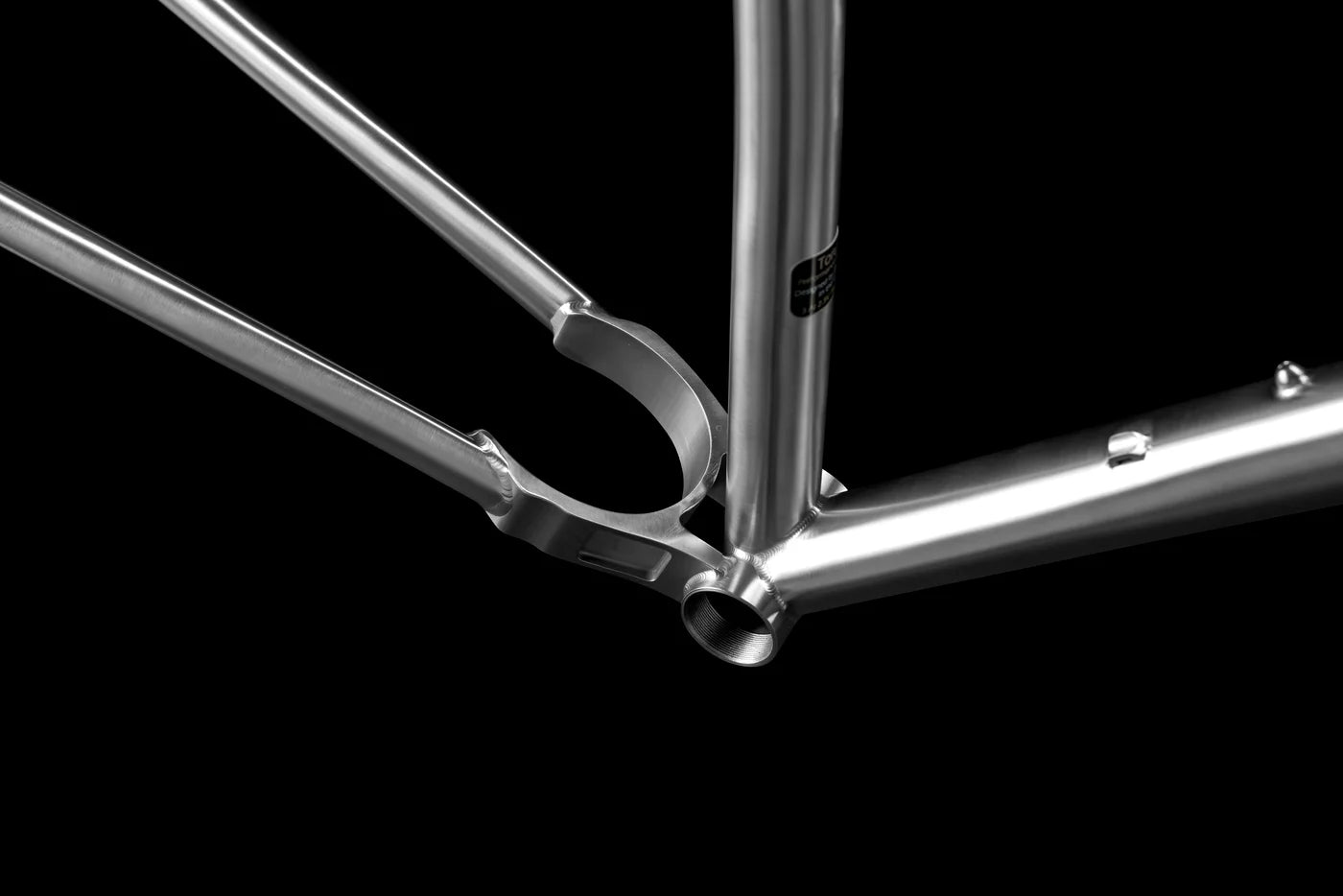

The chainstay/BB still uses a machined yoke.  3 benefits - increased lateral stiffness, increased tyre/chainring clearance and shorter chainstays.​

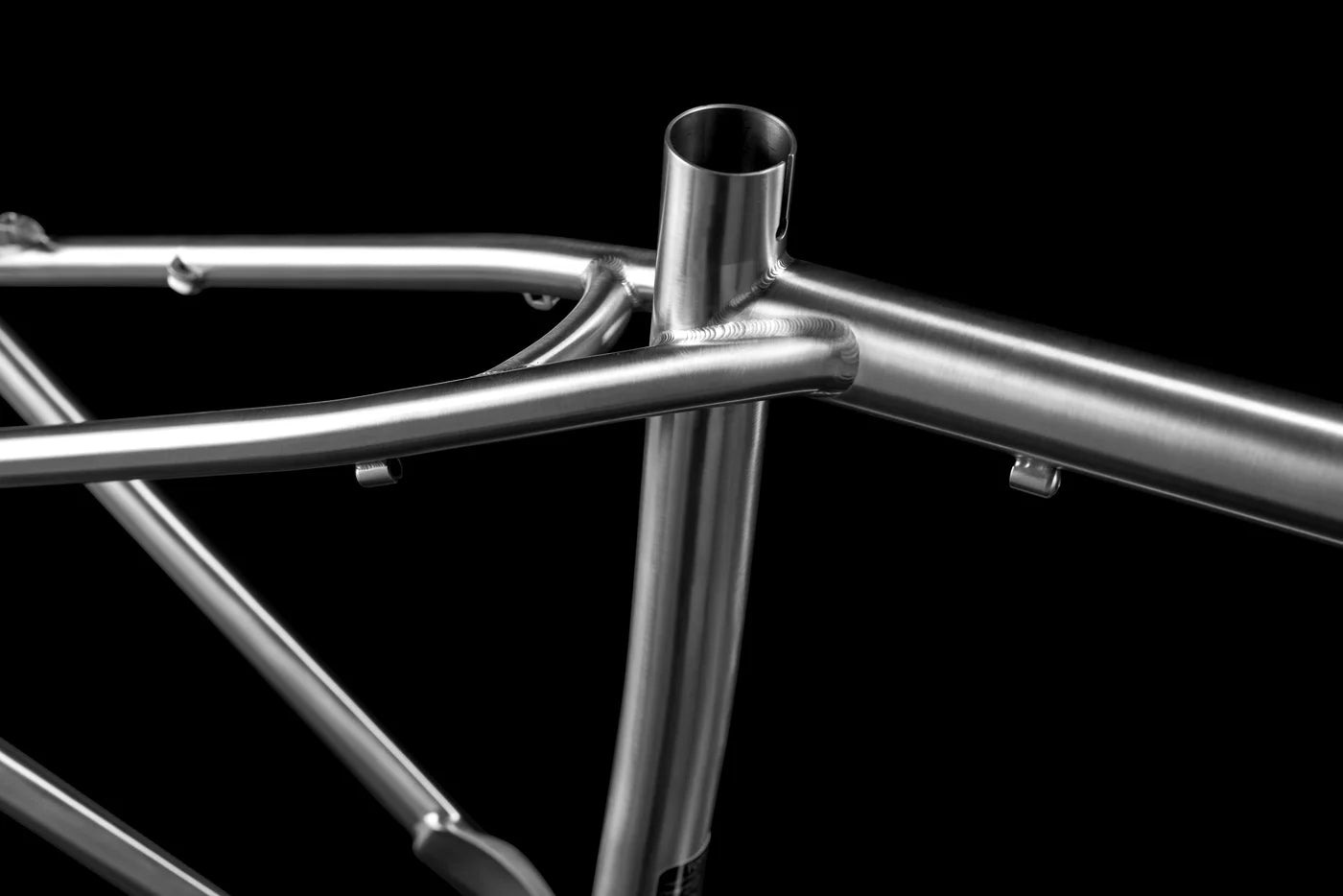

The seat stays still extended in front of the seat tube to increase lateral stiffness.​

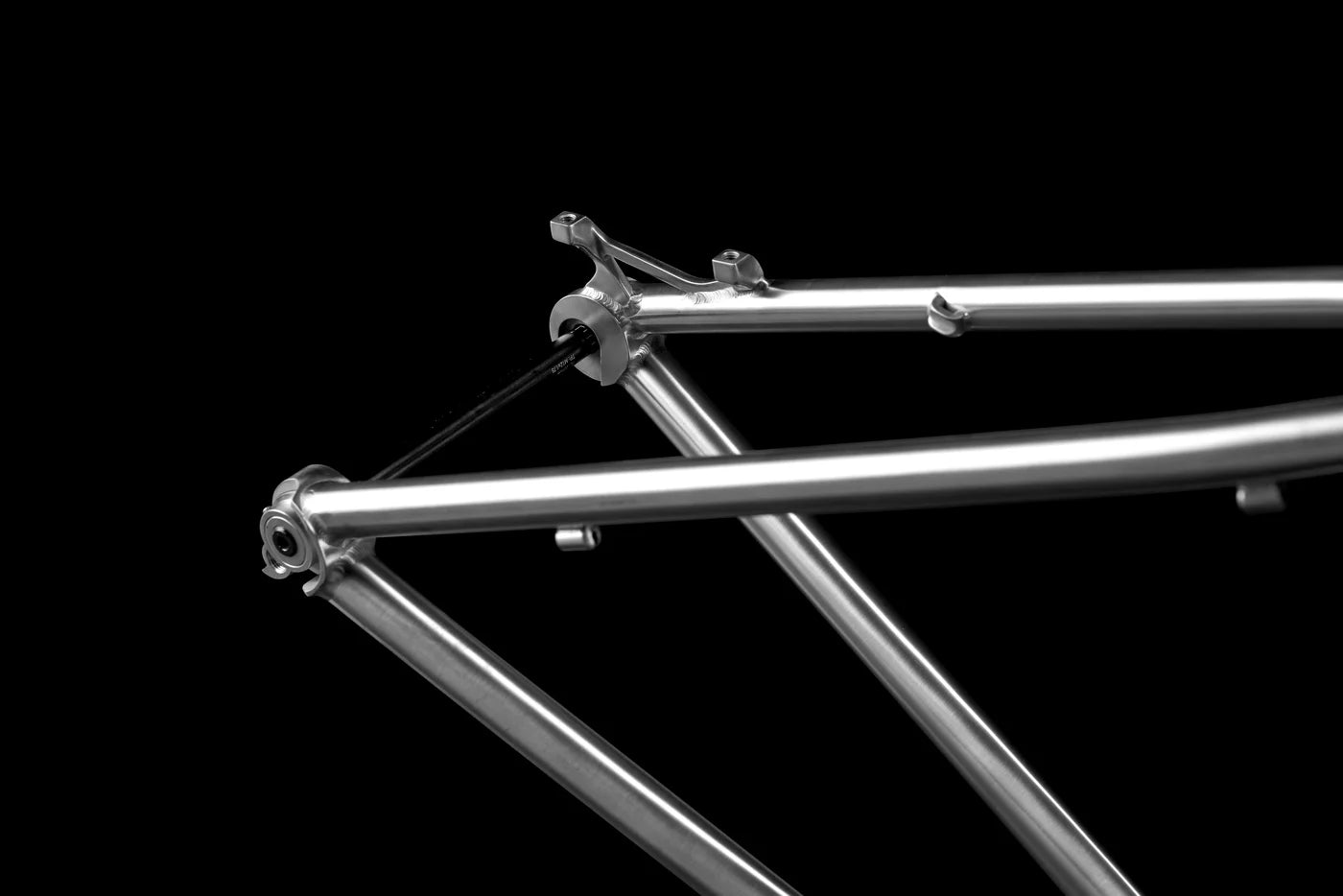

 The machined 44mm headtube with external lower headset cup maintains the traditional Torus style ​

Single chainring only for 1x drivetrains​

Laser etched headtube and - stealthy blasted down tube logo​

4 frame sizes – S, M, L and XL. See geometry table.

• 	Ti29 Mk4 Small	Ti29 Mk4 Medium	Ti29 Mk4 Large	Ti29 Mk4 XL
  Rider Height	5' - 5'6"	5'7" - 5'9"	5'10" - 6'1"	6'2" - 6'6"
  Reach	430	450	470	490
  Stack	605	616	630	650
  Top Tube Effective	600	612	633	655
  Head tube Angle	68	68	68	68
  Head tube Length	95	95	110	125
  Seat tube Angle	75	75	75.5	75.5
  Seat tube length	400	420	440	460
  Fork Length A-C	506	506	506	506
  BB Drop	60	60	60	60
  Chainstay	430	430	430	430
  chain line/ chain ring	52mm/38T	52mm/38T	52mm / 38T	52mm / 38T
  rear axle	12x148mm	12x148mm	12x148mm	12x148mm



  For more infomation on our frames and spec visit: The Torus website

If you are interested in reserving/pre-ordering a frame from our next order please send an email to Enquiries@clee-cycles.co.uk or use our contact infomation at the bottom of the page to leave us a message
