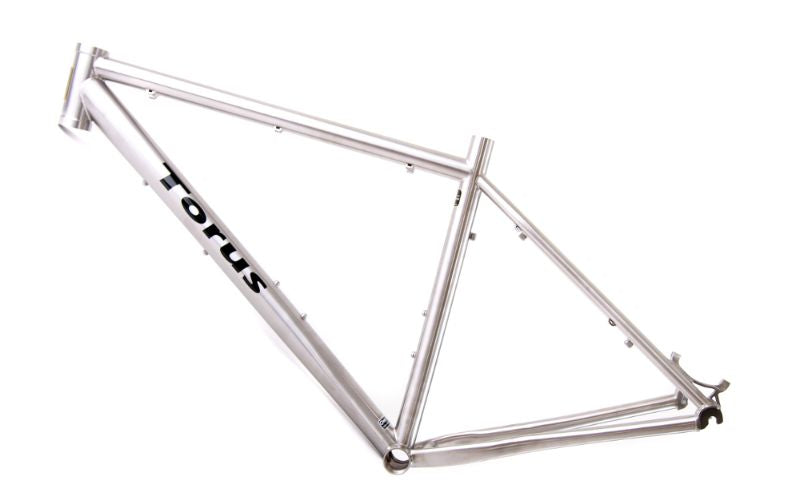

Torus Ti650 - Mk2 Frame

Torus Ti650 - Mk2 Frame

Regular price £1,100.00 GBP
Regular price Sale price £1,100.00 GBP
Sale Sold out
Tax included.
Size

The Mk2 Titanium 650b  is the same great supple frame, but with a few marked improvements.  We've ridden the original Ti650fd for a over a year now, we've listened to riders who also love it, we've listened to riders who've tested it - and we've listened to what they've said!

The Ti650 is a more nimble ride than the Ti29 - and having slightly smaller wheels and tubes does make it stiffer!  But with the tweeks to the Mk2 it will be a bike you'll love riding even more.

There's no doubting the sublime ride of the Ti650 but the natural compliance of titanium can give too much movement for some - so we've stiffened it up in a couple of key areas without distracting from the classic style and the lively, fast ride characteristics.

The headtube has been changed - it's machined with external reinforcement, still 44mm top and bottom, but uses an external lower headset cup to facilitate taper steerers. It can be used with straight 1 1/8" steerers with a reducer crown.
The top tube has had the weld area maximised whilst keeping the classic round profile.  The down tube  is still a big stiff 45mm but has been subtly manipulated to increase weld area and improve stiffness.
ti29-mk2-20.jpg ti29-mk2-21.jpg
The bottom bracket area has been stiffened by a subtle down tube manipulation - by making it wider at the BB junction we've improved lateral stiffness. ti29-mk2-15.jpg  ti29-mk2-6.jpg
The chainstays are bigger in diameter, and profiled at the BB to increase tyre and chainring clearance.  Chainring clearance has been optimised to XX1 chain lines. The dropouts are investment cast giving increased weld area whilst being as light as possible. ti29-mk2-19.jpg  ti29-mk2-18.jpg
The sliding dropouts are cnc machined from 6061 alloy and anodised black. Post mount too! ti29-mk2-13.jpg

Designed for a 100mm suspension fork, it will also ride racey with an 80mm suspension fork, or super slack on a 120mm fork - or even a rigid fork (455mm length).

Still built from plain gauge Ti-3Al-2.5V tubing, Ti-6Al-4V dropouts.   Available with cowled fixed dropouts or sliding dropouts.  The cowled fixed dropouts keep the weight low on a standard geared (derailleur) setup.  While, sliding dropouts provide maximum versatility - can be run with a derailleur, hub gear or singlespeed.

Specification

  • Clee Cycles’ geometry - long and low - see below
  • Ti-3Al-2.5V tubing
  • Ti-6Al-4V cowled fixed dropouts
  • Ti-6Al-4V sliding dropouts, with replaceable black anodised 7000 series alloy dropout plates
  • 44mm headtube for use with standard (1.125”), tapered, or 1.5” steerer tubes
  • 45mm (medium) and 48mm (large) diameter down tube
  • Seat Tube : 17" frame - 31.8mm (27.2mm seat post), 19" and 21"  frames - 34.9mm (31.6mm seat post)
  • 73mm BB shell
  • Brushed Ti finish with simple refined decals
  • Available in small (15"), medium (17”), large (19”) sizes
  • Weight:
    • Fixed dropout(15") - 1530g
    • Fixed dropout (17") - 1545g
    • Fixed dropout (19") - 1610g

Geometry

Frame Size (inches) Seat Tube (mm) Effective Top Tube (mm) Head Angle (deg.) Seat Angle (deg.) Head Tube (mm) Chain Stay (mm) BB Height (mm) BB Drop (mm) Crown-Axle (mm) Weight (g)
Small 15 406 585 71 73.5 95 420 308 41 455 1530
Medium 17 431 610 71 73 105 420 308 41 455 1545
Large 19 485 635 71 73 125 420 308 41 455 1610


Geometry is based on a 455 mm axle to crown fork length which is equivalent to an 80 mm fork sagged 10 mm.  A 100 mm fork will slacken the angles by 1 degree!

View the CAD drawings for the Small 15" 650B, the Medium 17" 650B or the Large 19" 650B frames.

Also available as a frameset with our Ti 650B fork!
